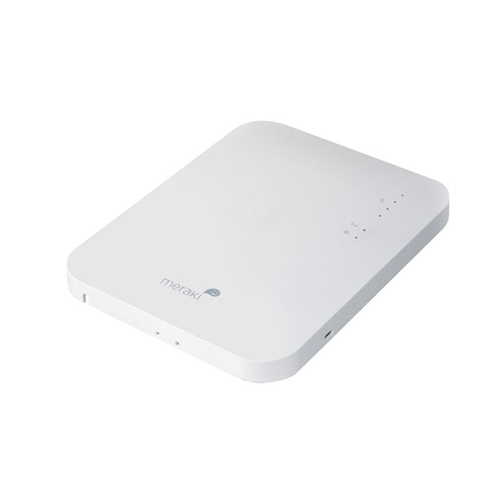

Access Point Cisco Meraki MR18-HW

MR18

• Radios
  • One 802.11b/g/n, one 802.11a/n radio, and one dedicated for dual-band WIPS & spectrum analysis
  • Concurrent operation of all three radios
  • Max data rate 600 Mbit/s
• Operating Bands
  • FCC (US)
    • 2.412-2.484 GHz
    • 5.150-5.250 GHz (UNII-1)
    • 5.725 -5.825 GHz (UNII-3)
  • EU (Europe)
    • 2.412-2.484 GHz
    • 5.150-5.250 GHz (UNII-1)
    • 5.250-5.350, 5.470-5.600 GHz, 5.650-5.725 GHz (UNII-2)
• 802.11n Capabilities
  • 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
  • Maximal ratio combining (MRC)
  • Beamforming
  • 20 and 40 MHz channels
  • Packet aggregation
  • Cyclic shift diversity (CSD) support
• Power
  • Power over Ethernet: 24 - 57 V (802.3af compatible)
  • 12V DC
  • Power consumption: 9.8 W max
  • Power over Ethernet injector and DC adapter sold separately
• Mounting
  • All standard mounting hardware included
  • Desktop and wall mount
  • Ceiling tile rail (9/16, 15/16 or 1 ½" flush or recessed rails)
  • Assorted cable junction boxes
• Physical Security
  • Security screw included
  • Kensington lock hard point
  • Anti-tamper cable bay
  • Concealed mount plate
• Environment
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing
• Physical Dimensions
  • 7.25” x 5.69” x 1.17” (186 mm x 146 mm x 30 mm) not including desk-mount feet or mount plate
  • Weight: 25.7 oz (0.73 kg)
• Antenna
  • Integrated omni-directional antennas
  • Gain: 3 dBi @ 2.4 GHz, 5 dBi @ 5 GHz

• Interfaces
  • 1 × 100/1000Base-T Ethernet (RJ45) with 48V DC 802.3af PoE
  • 1 × DC power connector (5mm x 2.1mm, center positive)
• Security
  • Integrated policy firewall (Identity Policy Manager)
  • Mobile device policies
  • Air Marshal: real-time WIPS (wireless intrustion protection system) with alarms
  • Guest Isolation
  • Teleworker VPN with IPsec
  • WEP, WPA, WPA2-PSK, and WPA2-Enterprise with 802.1X
  • TKIP and AES encryption
  • VLAN tagging (802.1Q)
• Quality of Service
  • Wireless Quality of Service (WMM/802.11e)
  • DSCP (802.1p)
  • Layer 7 application traffic shaping and firewall
• Mobility
  • PMK and OKC credential support for fast Layer 2 roaming
  • 802.11r and 802.11k
  • Layer 3 roaming
• LED Indicators
  • 2 Ethernet status
  • 1 power/booting/firmware upgrade status
• Regulatory
  • FCC (US)
  • IC (Canada)
  • CE (Europe)
  • C-Tick (Australia / New Zealand)
  • UL2043 (Plenum rating)
  • RoHS
  • For additional country-specific regulatory information, please contact Cisco Meraki sales
• Warranty
  • Lifetime hardware warranty with advanced replacement included
• Ordering Information
  • MR18-HW
    Cisco Meraki MR18 Cloud Managed Access Point
  • MA-INJ-4-US
    Cisco Meraki 802.3at Power over Ethernet Injector (US Plug)
  • MA-INJ-4-EU
    Cisco Meraki 802.3at Power over Ethernet Injector (EU Plug)
  • MA-INJ-4-UK
    Cisco Meraki 802.3at Power over Ethernet Injector (UK Plug)
  • MA-INJ-4-AU
    Cisco Meraki 802.3at Power over Ethernet Injector (AU Plug)
  • AC-MR-1-XX
    Cisco Meraki AC Adapter (US, EU, UK, AU)

Note: Meraki Enterprise license required.

• Horizontal 2.4 GHz

• Horizontal 5.0 GHz


• Vertical 2.4 GHz

• Vertical 5.0 GHz
