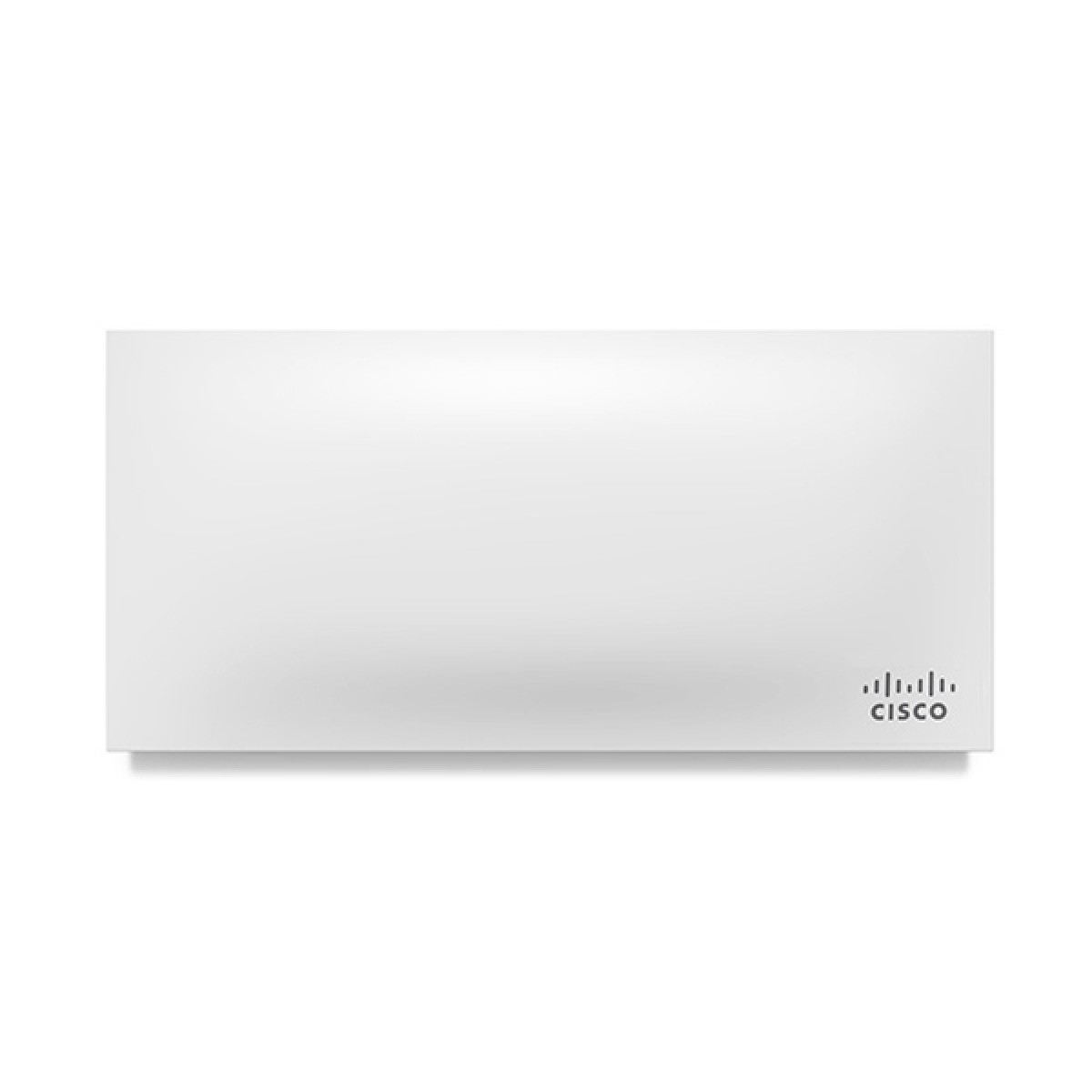

Access Point Meraki Cisco MR33 Cloud 802.11ac wireless

Access Point Cisco Meraki MR33

• Radios
  • 2.4 GHz 802.11b/g/n/ac client access radio
  • 5 GHz 802.11a/n/ac client access radio
  • 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
  • 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and BLE scanning support
  • Concurrent operations of all four radios
• Operating Bands
  • • 2.412-2.484 GHz
    • 5.150-5.250 GHz (UNII-1)
    • 5.250-5.350 GHZ (UNII-2)
    • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
    • 5.725 -5.825 GHz (UNII-3)
• 802.11ac & 802.11n Capabilities
  • 2x2 multiple input, multiple output (MIMO) with two spatial streams
  • Maximal ratio combining (MRC)
  • Beamforming
  • 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
  • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
  • Packet aggregation
• Power
  • Power over Ethernet: 37 - 57 V (802.3af compatible)
  • Alternative 12 V DC input
  • Power consumption: 11W max (802.3af)
  • Power over Ethernet injector and DC adapter sold separately
• Mounting
  • All standard mounting hardware included
  • Desktop, ceiling, and wall mount capable
  • Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
  • Bubble level on mounting cradle for accurate horizontal wall mounting
• Physical Security
  • Two security screw options (included)
  • Kensington lock hard point
  • Concealed mount plate with anti-tamper cable bay
• Environment
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing

• Physical Dimensions
  • 8.5” x 4.3” x 1.3” (215 mm x 110 mm x 32 mm), not including deskmount feet or mount plate
  • Weight: 13.2 oz (376.5 g)
• Antenna
  • Integrated omni-directional antennas (3.8 dBi gain at 2.4 GHz, 3.9 dBi gain at 5 GHz)
• Interfaces
  • 1 × 10/100/1000 BASE-T Ethernet (RJ45)
  • 1 × DC power connector (5.5 mm x 2.5 mm, center positive)
• Security
  • Integrated layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1Q) and tunneling with IPSec VPN
  • PCI compliance reporting
  • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
• Quality of Service
  • Advanced Power Save (U-APSD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping
• Mobility
  • PMK, OKC, and 802.11r for fast Layer 2 roaming
  • Distributed or centralized layer 3 roaming
• LED Indicators
  • 4x 2 Ethernet status for Ethernet ports
  • 1 power/booting/firmware upgrade status
• Warranty
  • Lifetime hardware warranty with advanced replacement included
• Compliance
  • RoHS
• Ordering Information
  • MR33-HW
    Meraki MR33 Cloud Managed 802.11ac AP
  • MA-PWR-30W-XX
    Meraki AC Adapter for MR Series (XX = US, EU, UK or AU)
  • MA-INJ-4-XX
    Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU)
  • Note: Meraki Enterprise license required
