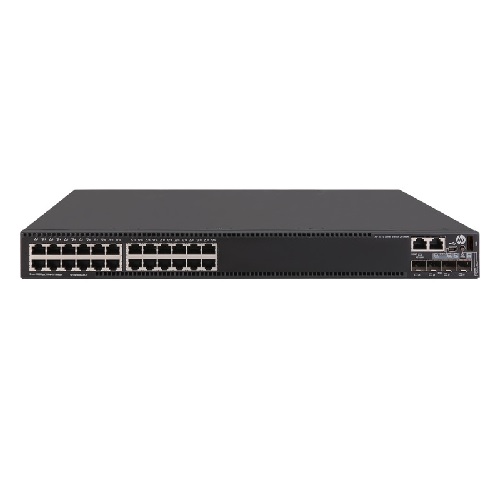

Switch HPE Aruba Flex Network 5510 24 portas Gigabit 4 slots SFP+ JH145A

Switch HPE Flex Network 5510 24G 4SFP+ HI 1-slot - 24 portas 10/100/1000 Base-T RJ-45 + 4 slots SFP+ 1/10-GbE para fibra + 1 slot de expansão - JH145A

SWITCH HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Switch (JH145A) I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec 4 SFP+ 10GbE ports 1 port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module Additional ports and slots 1 dual-personality (RJ-45 or mini USB) serial console port 1 RJ-45 out-of-band management port 1 USB 2.0 Power supplies 2 power supply slots 1 minimum power supply required (ordered separately) Fan tray Airflow direction is Front (port side) to Back (power cord side) Physical characteristics Dimensions 17.32(w) x 14.17(d) x 1.72(h) in (44.00 x 36.00 x 4.37 cm) (1U height) Weight 16.53 lb (7.5 kg) shipping weight Memory and processor 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) Performance IPv6 Ready Certified 1000 Mb Latency < 5 μs 10 Gbps Latency < 3 μs Throughput up to 214 Mpps Routing/Switching capacity 288 Gbps Routing table size 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size 32768 entries Environment Operating temperature 32°F to 113°F (0°C to 45°C) Operating relative humidity 10% to 90%, noncondensing Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) Nonoperating/Storage relative humidity 5% to 95%, noncondensing Acoustic Low-speed fan: 52.8 dB, High-speed fan: 66.7 dB; ISO 7779 Electrical characteristics Frequency 50/60 H Maximum heat dissipation 365 BTU/hr (385.08 kJ/hr), Ranges from 167 BTU/hr to 392 BTU/hr, depending on power supply configuration Voltage 100 - 240 VAC, rated (90 - 264 VAC, max) -48 to -60 VDC, rated (-36 to -72 VDC, max) (depending on power supply chosen) Maximum power rating 107 W Idle power 55 W

Switch HPE ARUBA FlexNetwork 5510 24 portas Gigabit 4SFP+ HI JH145A

Switch HP 5510 Gigabit Ethernet que oferecem resiliência, segurança e capacidades de suporte multiserviço
Switch HPE Empilhavel com uplink de 10 Gigabit com stacking bandwidth 160 GB/s
• 40 Gigabit QSFP+ para uplink ou stacking
• 4 portas SFP+ 10GbE para uplinks provendo alta performance
• MACsec support

Inteligência Resiliente de Fábrica (IRF)

Crie pilhas de switchs HP 5510 resilientes virtuais, onde dois a nove switchs HPE executam como único switch L2 e roteador L3;
Elimine a necessidade de protocolos complexos, como Spanning Tree Protocol, multipath Equal-Cost (ECMP) ou VRRP, simplificando assim a operação da rede
